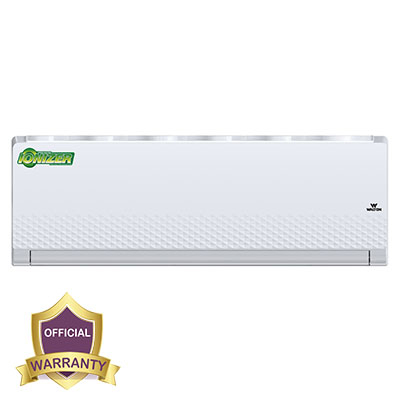

2 Ton Non Inverter WSN-DIAMOND-24B

Basic Features

Function Cooling

BTU/hr 24000

Rated Voltage 220V-240V ~ 50Hz

Rated Input Power (W) 2280

Rated Current (A) 10.7

Cooling Capacity (W) 7034

EER 3.08

Cooling Features

Compressor Type Rotary (Fixed Speed)

Refrigerant Type R-410a

Refrigerant Amount (Kg) 1.48

Operating Range (Ambient Temperature) 20˚C to 43˚C

Evaporator Fin Type Louvered Fin

Condenser Type Copper Tube Condenser

Condenser Fin Type Slit Fin

Maximum Pipe Length 15m

Operations

Turbo Mode (Maximum Cooling) Yes

ECO Mode (Power Saving) No

Dry Mode  Yes

Fan Mood Yes

Auto Operation Yes

Auto Restart Yes

Comfort Colling Yes

Speed Setting Yes (Auto, High, Medium, Low)

Timer Yes

Sleep Yes

Remote & Air Deflection

Display Type LCD

Operation/Control Via IR (Infrared Ray)

Child Lock  Yes

Temperature Unit Change Yes (16​°C to 31°C)

Auto UP-Down Swing Yes

Auto Left-Right Swing Yes

Dimensions & Weights

ndoor Dimensions (mm) [L×W×H] Unit: 1081 x 325 x 233

Packing: 1180 x 410 x 315

Outdoor Dimensions (mm) [L×W×H] Unit: 865 x 370 x 687

Packing: 935 x 435 x 750

Net Weight (Indoor) (Kg) 15 ± 0.5

Gross Weight (Indoor) (Kg) 18.5 ± 0.5

Net Weight (Outdoor) (Kg) 46 ± 1

Gross Weight (outdoor) (Kg) 52 ± 1

Warranty Information

For Residential Usage Compressor Warranty: 5 Years

Spare Parts Support: 3 Years

After Sales Service: 1 Year (Free)

For Commercial Usage Compressor Warranty: 5 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)
