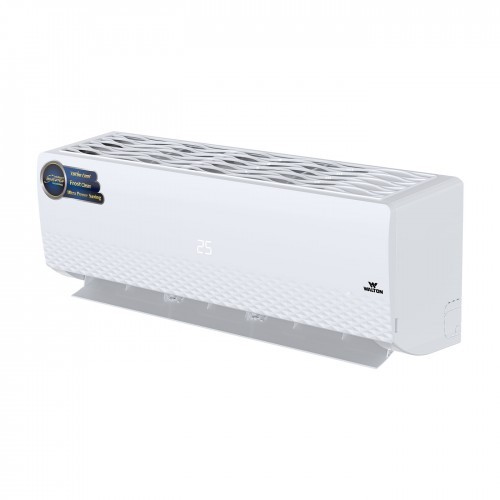

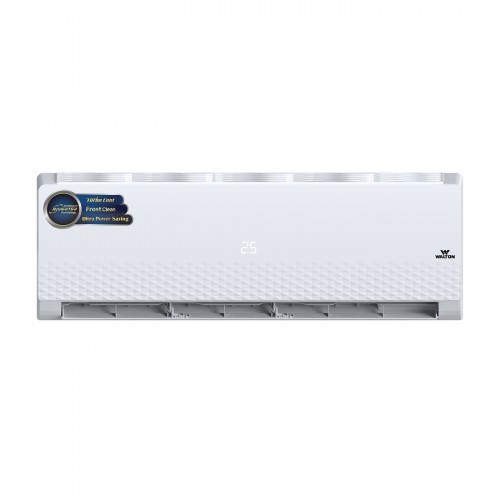

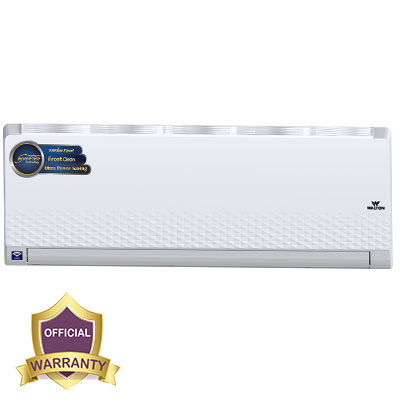

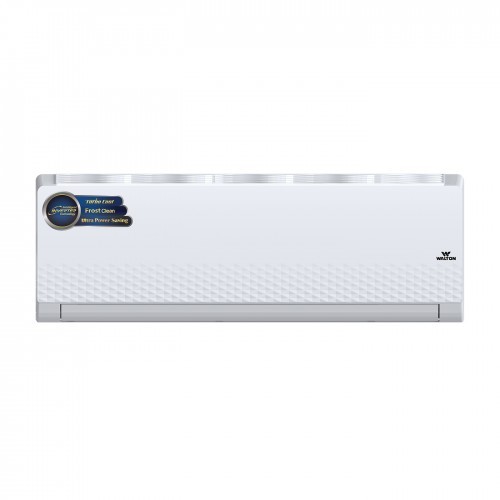

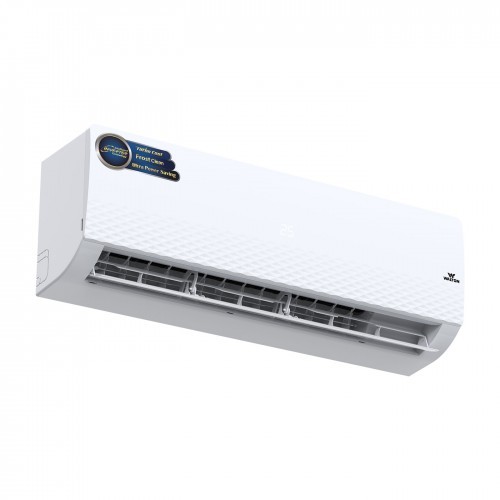

Walton 1.5 Ton WSI-DIAMOND-18F [SMART] Intelligent Inverter

Basic Features:

Function Cooling

BTU/hr 18000

Rated Voltage 230V ~ 50Hz

Rated Input Power (W) 1570

Rated Current (A) 6.82

Cooling Capacity (W) 5275

EER 3.35

Smart Control Through App

Cooling Features:

Compressor Type Rotary (Inverter)

Refrigerant Type R-32

Refrigerant Amount (Kg) 0.92

Operating Range (Ambient Temperature) 20˚C to 43˚C

Evaporator Fin Type Louvered Fin

Condenser Type Copper Tube Condenser

Condenser Fin Type Slit Fin

Maximum Pipe Length 10m

Operations:

Turbo Mode (Maximum Cooling) Yes

ECO Mode (Power Saving) Yes

Dry Mode Yes

Fan Mood Yes

Auto Operation Yes

Auto Restart Yes

Comfort Cooling Yes

Speed Setting Yes (Auto, High, Medium, Low)

Timer Yes

Sleep Yes

Remote & Air Deflection:

Display Type LCD

Operation/Control Via IR (Infrared Ray)

Child Lock Yes

Temperature Unit Change Yes (16​°C to 31°C)

Auto UP-Down Swing Yes

Auto Left-Right Swing Yes

Dimensions & Weights:

Indoor Dimensions (mm) [L×W×H] Unit: 933 x 321 x 230 Packing: 1010 x 380 x 290

Outdoor Dimensions (mm) [L×W×H] Unit: 844 x 310 x 546

Packing: 900 x 372 x 610

Net Weight (Indoor) (Kg) 12.5 ± 0.5

Gross Weight (Indoor) (Kg) 15 ± 0.5

Net Weight (Outdoor) (Kg) 26.5 ± 1

Gross Weight (outdoor) (Kg) 31 ± 1

Guarantee Information:

Product Replacement Guarantee: 1 Year (Note: if there are manufacturing faults in heat exchanger & compressor)

Warranty Information:

For Residential Usage:

Compressor Warranty: 10 Years

Spare Parts Support: 3 Years

After Sales Service: 1 Year (Free)

For Commercial Usage:

Compressor Warranty: 5 Years

Spare Parts Support: 2 Years

After Sales Service: 1 Year (Free)
